Technical details
Specifications
The PacWizz pressure sensors are calibrated against a reference pressure gauge through a calibrated current meter. The transducers have low drift and good long-term stability: errors due to age should not exceed 1.5%.
Download the user manual (PDF)
Measurement
Calculations are applied using local atmospheric pressure and the pressure applied.
| Transducer | Measurement range | Resolution | Typical accuracy |
|---|---|---|---|
| Head pressure | 0 to 15 psi | 0.01 psi | Better than 3% |
| Calculated repeatability | ±0.2 psi | N/A | 3% |
Pressure, power and enclosure
| Head pressure max | 15 psi |
| Foot pressure max | 30 psi, including the hydrostatic pressure of the liquid |
| Power | 24 VDC, 24 W maximum |
| Enclosure | Modified NEMA 4 box |
| Enclosure size | 10.5 × 7 × 4 in (approx.) |
| Mounting | External brackets: hang from the CIP arm or mount on a wall |
| Purge gases | CO₂, N₂ or beer gas blends |
Environment and certification
NRTL (QPS) inspected as a portable product for the USA and Canada. EC EMC compliance tested by a UKAS lab (main assembly only).
| Certification | UL 61010 (North America), EMC compliant CE |
| Use | Indoor use only |
| Altitude | Up to 2000 m |
| Operating temperature | 5 °C to 40 °C |
| Relative humidity | 80% max up to 31 °C, decreasing linearly to 50% at 40 °C |
| Pollution degree | 2 |
In the box
What ships with the PacWizz
| Part | Description | Qty |
|---|---|---|

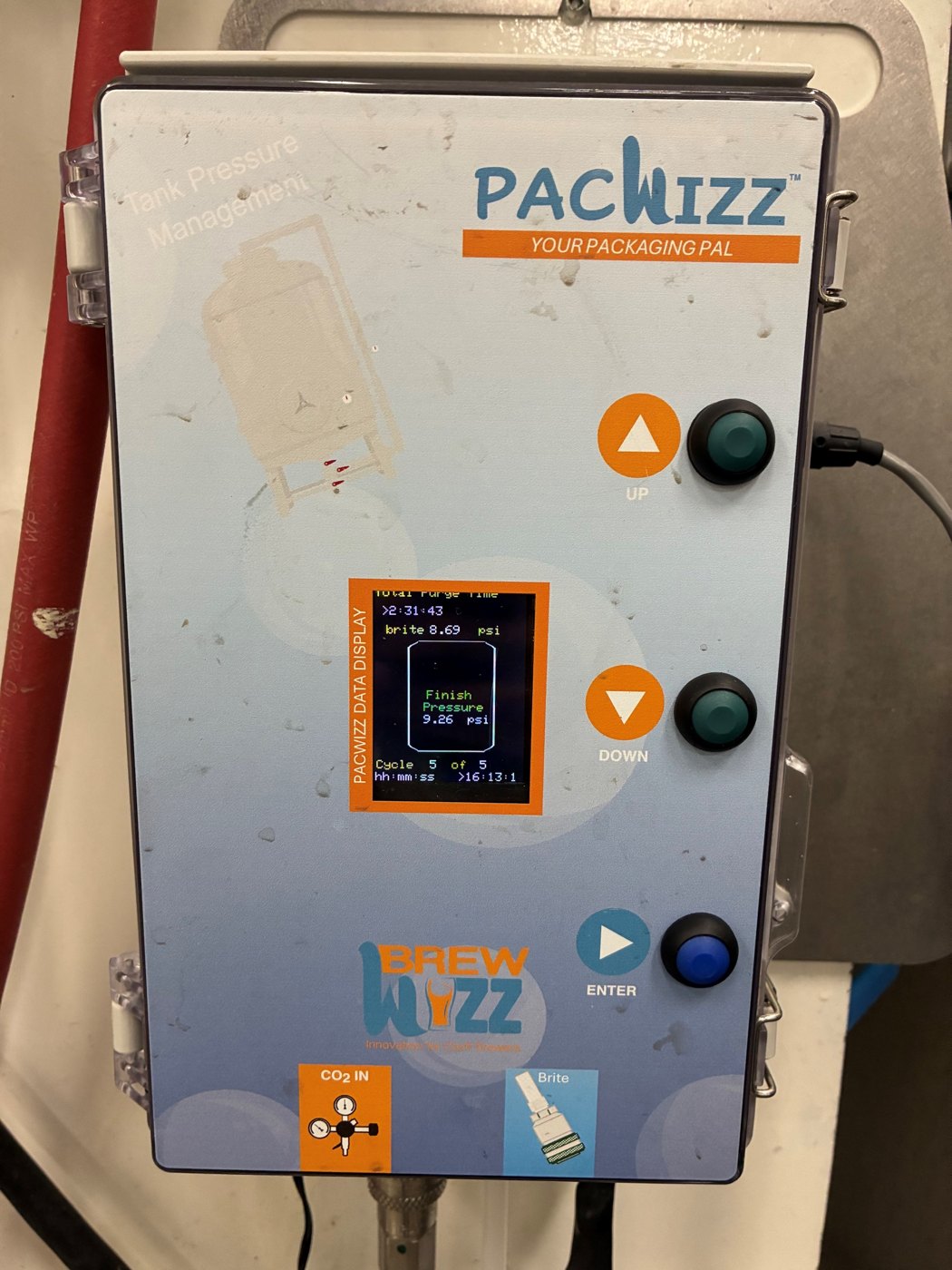

| PacWizz | Main enclosure with display and pushbuttons, plus quick connections for CO₂ source and supply | 1 |
| Foot Pressure Sensor | 316 stainless steel sensor for liquid or gas pressure, 1½" tri-clamp connection | 1 |
| Brite Hose | 10 ft, 5/16" push to connect, NSF-61 approved, with click-to-connect stainless industrial fitting | 1 |
| Remote Motorized Ball-valve (RMB) | Motorized ball valve to 1½" tri-clamp fitting. Purging version only | 1 |
| Dual CO₂-in connector | Click-to-connect stainless fitting for the CO₂-in port, so two regulators can feed the PacWizz | 1 |
